Beskrivning av FLASHER RELAY R2
Load-Independent Indicator Relay
Flasher Relay R2: The Classic! The load-independent R2 flasher relay is the universal problem solver when using LED and halogen indicators. It replaces all original 2-3 pole flasher relays and delivers a constant and correct flashing frequency.
Connection is simple. If following the conversion to LED indicators, the non-activated indicators also flash, then all that is required is for the relay to be connected to a left and a right indicator in order to reliably cure this problem.

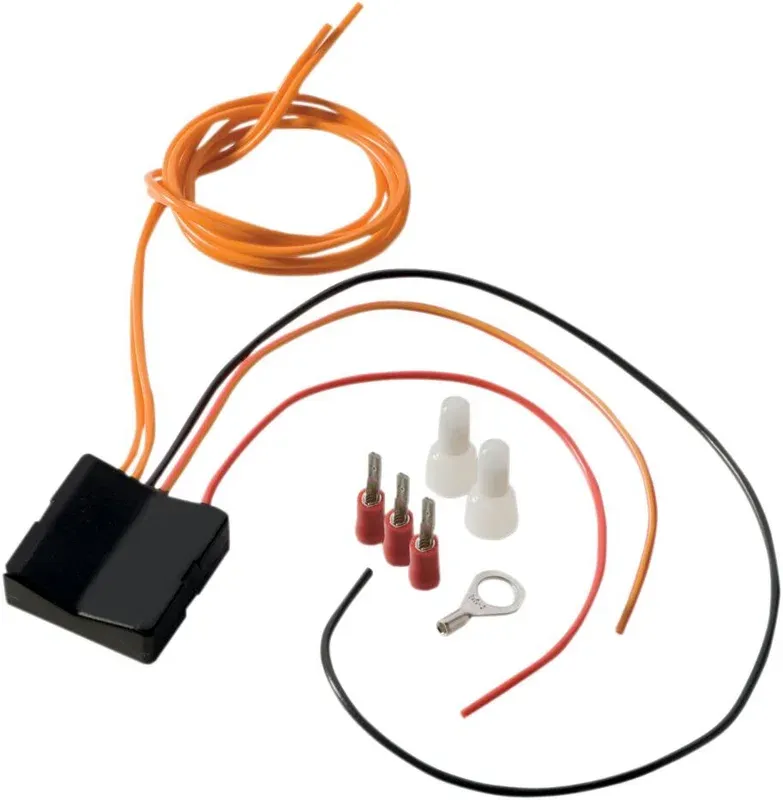

All necessary components required for installation are included.
In certain cases the hazard warning flasher facility must be deactivated.
Replaces the original 2-3 pole flasher relay.
Restricts the accompanying flashing of non-activated indicators.
Load-independent / usual flash rate.
Switching capacity 0,5-85 watt.
Small dimensions 34 x 22 x12 [mm] (L/W/H).
High quality metal housing.
Suitable for indicator switches.
Suitable for 12 volt DC applications.
